SL878X7
2.4GHz Wireless Remote 7 Channel Driver Module
General Description

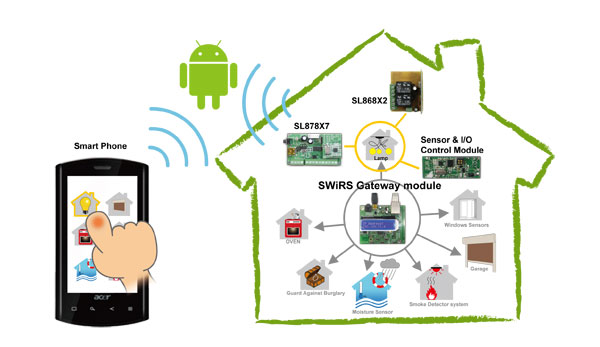

SL878X7, a 2.4GHz ISM band wireless remote high current Darlington arrays, contains seven open collector Darlington pairs with common emitters. Each channel is rated at 500mA and able to withstand peak currents of 600mA. Together with SWiRAS gateway and application software, via local network and internet, SL878-x7 can be easily controlled by a SmartPhone (including iPhone, Android Phone and all the other smart phones) or PC sending specified commands. Thus, this versatile device is useful for driving a wide range of loads including solenoids, relays DC motors, LED displays, filament lamps and high power buffers in the remote site.
2.4GHz Wireless Remote 7 Channel Driver
Applications
- Solenoids, relays DC motors, LED displays and filament lamps control
- Home automation
- Wireless remote controlled by SmartPhone
- Switch On/Off light, fan and all the other electric appliances by SmartPhone.
Features
- No plug-in and unplug inconvenience for saving standby power
- Operating frequency: 2400MHz ~ 2483.5 MHz ISM Band
- Low power consumption: 5Vdc x 30mA
- 500mA high current output per channel
- Easily control SL878X7 by SmartPhone via SWiRAS
- Application ranging from simple domestic remote control to autonomous control
- Extremely easy to set-up and operate
- Android application program available
- Home page control from PC/NB via SWiRAS
- SWiRAS (Smart Wireless Remote Access Solution) compatible device
- Direct wireless connectivity to SWiRAS gateway
Specification
Type |
|
Input Voltage |
|
Output Voltage |
|
Output Current |
|
Transmission |
|
Local Interface |
|
Remote |
|
Encoding Type. |
|
Notes |
|
PIN & connector Configuration
Typical Software Applications
Android Application software available
Application
